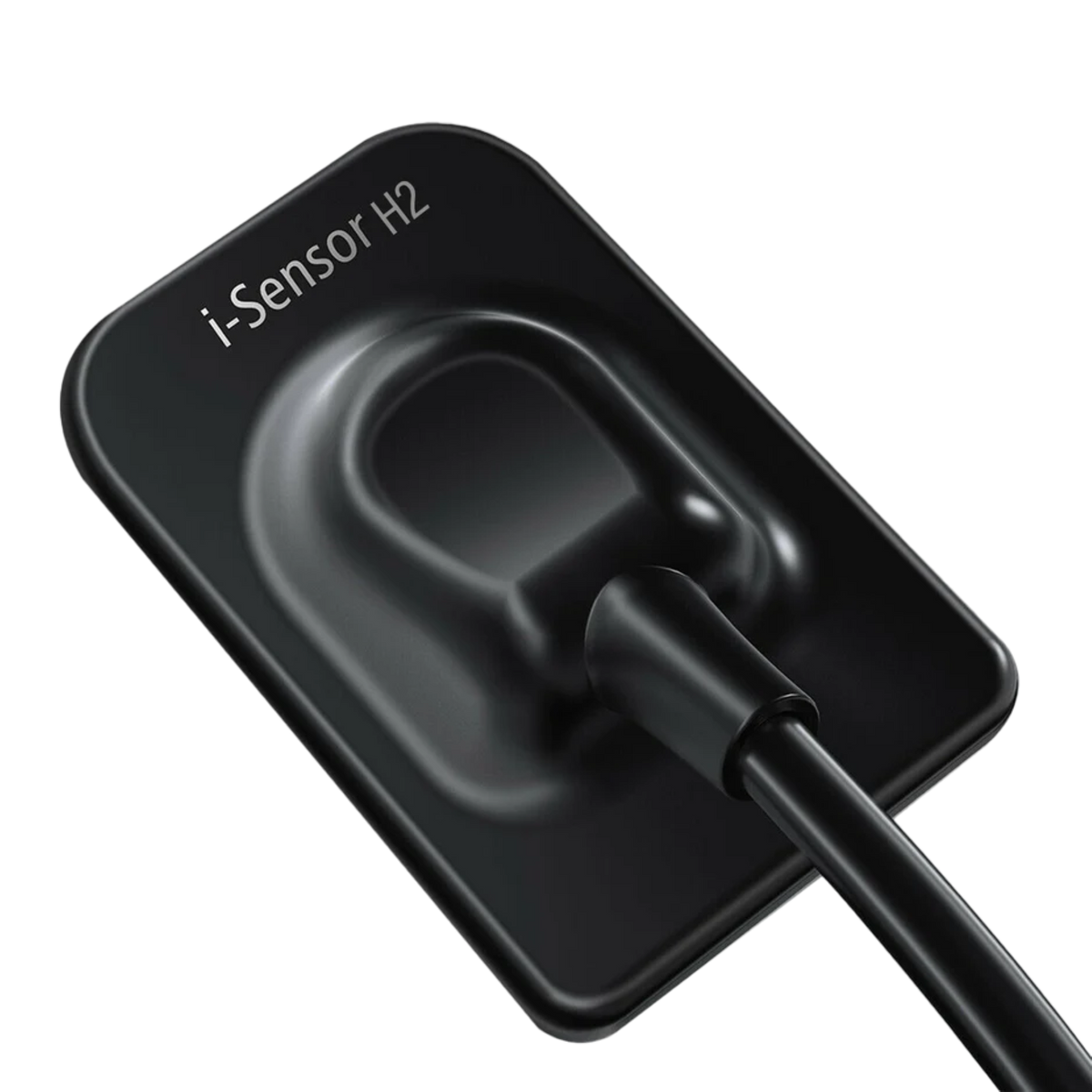

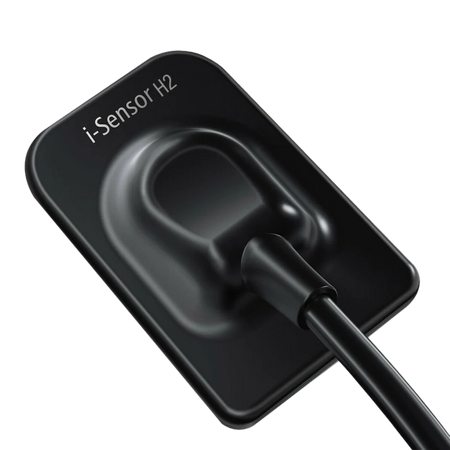

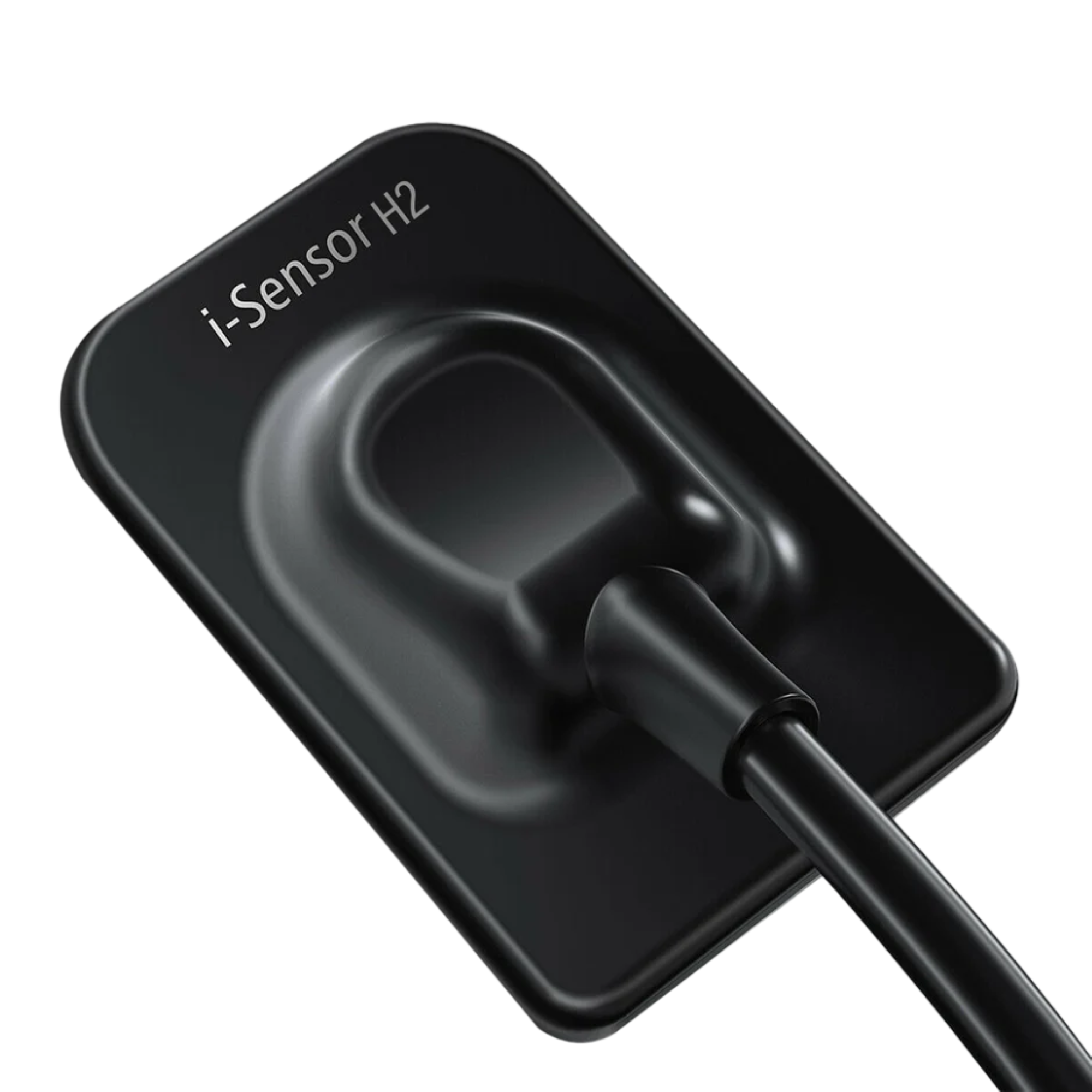

i-Sensor - Digital X-Ray Sensor - Woodpecker

i-Sensor -   Digital X-Ray Sensor - Woodpecker

Compatibility: Supports TWAIN driver, compatible with leading dental software (OpenDental, EagleSoft, Dentrix, Carestream, etc.)

WP-X-RAY-I-SENSOR-H2

WP-X-RAY-I-SENSOR-H1.5  - Special order

WP-X-RAY-I-SENSOR-H1  - Special order

The Woodpecker i-Sensor is designed to streamline your intraoral imaging process, delivering high-resolution images with ease and precision. Its ultra-thin design ensures comfortable placement, while its advanced CMOS** technology provides excellent diagnostic images. Fully compatible with most dental practice management software, the i-Sensor integrates seamlessly into any modern practice.

Equipped with user-friendly and powerful imaging software, the Woodpecker / DTE i-Sensor supports TWAIN drivers, ensuring compatibility with a wide range of platforms. Its durability is proven with over 80,000 bending tests and the highest IP68 rating for waterproofing, ensuring long-lasting reliability in any practice setting.

Sensor Options

• i-Sensor H1 (Size 1 / Children)
  With an imaging area of 20×30 mm (mechanical size: 38.5mm x 25mm x 4.5mm), this sensor is specifically designed for children, ensuring comfortable and effective imaging for smaller mouths.

• i-Sensor H1.5 (Size 1.5 / Older Children and Adults):
  Featuring an imaging area of 24×33 mm (mechanical size: 43.5mm x 29.2mm x 4.5mm), this sensor is ideal for older children and smaller adults, providing a balance between compact size and sufficient coverage.

• i-Sensor H2 (Size 2 / Adults):
  The largest option, with an imaging area of 26×36 mm (mechanical size: 45mm x 31mm x 4.5mm), this sensor is tailored for adults, offering optimal imaging for routine dental examinations.

Key Features

Pixel Matrix: H1 1000 x 1500 / H1.5 1300 x 1800 / H2 1300 x 1800, with ultra-high image resolution of 25lp/mm, offering up to 1.5 million pixels

Thinnest Sensor: 4.5mm, providing easier placement in the patient’s mouth

Durability: Over 80,000 bending tests passed, IP68-rated waterproof design, resistant to disinfectant immersion

Ergonomics: Curved edges and flexible 9-foot cable ensure patient comfort and easy maneuverability

Compatibility: Supports TWAIN driver, compatible with leading dental software (OpenDental, EagleSoft, Dentrix, Carestream, etc.)

System Support: Works with Windows 7 or above (not compatible with Windows XP or Mac systems)

Powerful Software: Includes smart, easy-to-use imaging software, Ai Dental, with unlimited device connections and workflow efficiency features

High Resolution: Provides exceptionally clear diagnostic images with advanced CMOS technology

Reliable: FDA and Health Canada-approved, with enhanced performance for effective treatment planning

CMOS

(Complementary Metal-Oxide-Semiconductor) technology in Woodpecker i-Sensors refers to the advanced imaging sensor technology used to capture X-ray images. Here's how CMOS technology benefits Woodpecker i-Sensors:

1. High Image Quality: CMOS sensors provide high-resolution digital images with fine details, which are crucial for accurate diagnosis in dental imaging.

2. Faster Image Acquisition: The technology allows for faster processing of images, meaning the captured X-ray data can be quickly transferred to a computer, reducing wait times for dental professionals and patients.

3. Low Power Consumption: CMOS sensors consume less power compared to other imaging technologies, like CCD (Charge-Coupled Device) sensors. This makes them more energy-efficient, helping extend the lifespan of the device.

4. Compact Design: CMOS sensors are typically smaller, enabling the creation of thin, lightweight, and ergonomic sensor designs like those found in the Woodpecker i-Sensors H1/H1.5/H2, which are easier to use in a patient's mouth.

5. Durability and Reliability: CMOS sensors tend to be more durable and resistant to damage from everyday handling, contributing to the long-term reliability of the sensor in a dental practice setting.

Package Includes

• Woodpecker i-Sensor H1, H1.5 or H2 (2 year warranty)

• Disposable protective bags

• Sensor fixer

• Sensor silicone sleeve

• U disk

• 2 Fixing screws

• 2 Rubber stoppers

• Qualified certificate

• Instruction manual

• Packing list

Final Sale – No Returns:
All purchases are final. Returns are not accepted.

Warranty Coverage:

• iSensor(s) : 2-year limited warranty

• Battery: 1-year limited warranty

This warranty covers manufacturing defects and guarantees proper function under normal use conditions.

What’s Not Covered:
This warranty does not cover damage resulting from accidents, misuse, or negligence. Examples of non-covered situations include:

• Dropped or chewed items

• Water or extreme temperature exposure

• Damage caused by tripping, broken USB hubs, or tangled cords

• Evidence of tampering or unauthorized repairs

Software Installation

For seamless integration, download the Ai-Dental software via the included USB, which automatically installs the TWAIN driver, allowing compatibility with most X-ray software.

Woodpecker I-sensors are typically compatible with a wide range of popular dental imaging software platforms. Some of the commonly supported imaging software include:

• Dexis
• Carestream
• Sopro Imaging
• Planmeca Romexis
• Vatech EzDent
• Schick CDR
• Apteryx
• Cliniview
• VixWin
• TigerView

If you are using any other specific software in your clinic, it may still be compatible, but you might need to install drivers or configure settings.
